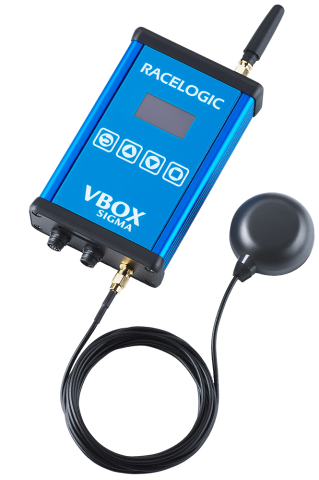

VBOX Sigma

VBOX Sigma is a cost-effective, RTK enabled data logger with integrated NTRIP modem. Its multi-constellation, multi-frequency GNSS engine offers outstanding RTK performance even in areas with poor and multi-path satellite coverage.

When used in conjunction with an RTK base station or NTRIP correction service, VBOX Sigma is accurate to within a centimetre and is the ideal reference for ground truth.

What can VBOX Sigma deliver?

Accuracy

When used in conjunction with an RTK base station or NTRIP correction service, VBOX Sigma is accurate to within a centimetre and is the ideal reference for ground truth.

Reliable GNSS Reception

Its multi-constellation, multi-frequency GNSS engine offers outstanding RTK performance even in areas with poor and multi-path satellite coverage.

Cost-effective

Using the latest GNSS receiver, VBOX Sigma is an incredibly cost-effective solution for reliable PNT measurement.

In-built NTRIP Link

The integrated NTRIP modem makes it easy to receive RTK correction messages from an NTRIP network, either via Wi-Fi or a cellular connection.

Data Recording

VBOX Sigma records data at 10 Hz and saved it to an SD card for data analysis.

CAN Bus Output

VBOX Sigma has a CAN Bus output for connection to a 3rd party data logger or another device.

Live Data Display

VBOX Sigma has a serial output for live data display on your PC (running VBOX Test Suite software).

Integration

VBOX Sigma can be used as an add-on product or built into your own solution to provide accurate ground truth. Please ask us for options to integrate.

What are the applications of VBOX Sigma?

The high accuracy and signal reliability of VBOX Sigma makes it ideally suited for autonomous applications.

As a standalone solution, VBOX Sigma delivers robust ground truth and position data logging, which offers an affordable solution for position logging of multiple vehicles during automotive AV development and testing scenarios.

VBOX Sigma can also be easily integrated into any autonomous system to provide accurate and reliable positioning. This includes integration with autonomous agriculture robots, last mile delivery technology and smart city solutions for landscaping, cleaning and maintenance.

The potential applications are almost limitless and with VBOX Sigma designed and manufactured in-house by RACELOGIC engineers, we can provide bespoke adaptations and integrations that meet our customers’ needs.

What is the VBOX Sigma Technical Specification?

  • Update rate
    10 Hz
  • Speed accuracy
    ±0.1 km/h
  • Position accuracy (Standalone)*
    H: 1.5 m CEP
  • Position accuracy (with SBAS)*
    H: 1.0 m CEP
  • Position accuracy (with RTK)*

    H: 0.01 m + 1 ppm CEP
    V: 0.01 m + 1 ppm R50

  • Heading accuracy

    0.3°

  • Outputs

    CAN, RS232

  • Internet Protocol
    IPv4
  • Power requirements
    12 V DC (7 V to 30 V)
  • Operating temperature
    0°C to 65°C
  • Size
    142.8 (l) x 81.13 (w) x 27.8 (d)
  • Weight
    247 g

* Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection. 1 ppm means 1 mm/km away from base. ppm is limited to baselines up to 20 km
