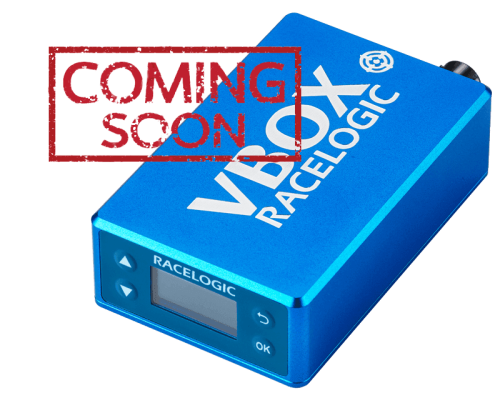

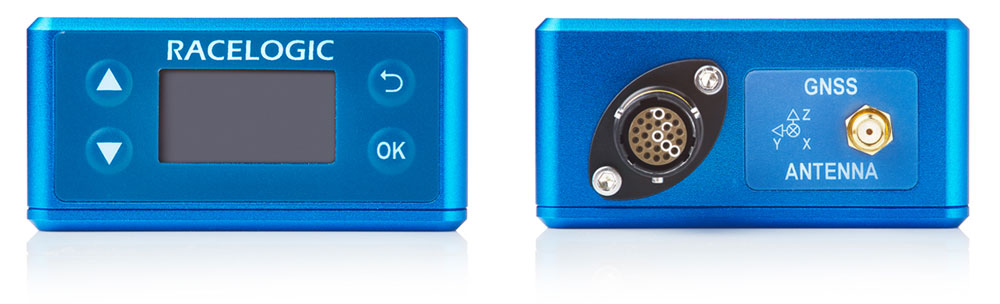

VBOX Omega

Our GNSS-aided Inertial Navigation System combines multi-frequency GNSS, inertial and wheel speed data for reliable position, velocity and heading data in areas with poor GNSS. VBOX Omega is ideal when you need PNT in any outdoor environment.

Get a quote

Key Features

Centimetre-level Accuracy

Connected to a base station or an NTRIP modem, VBOX Omega delivers centimetre-level positional accuracy.

Wheel Speed Integration

In GNSS denied environments, such as tunnels and deep urban canyons, VBOX Omega significantly improves the accuracy of the estimated speed and position data by combining wheel speed with GNSS and inertial data.

High-grade Inertial Measurement Unit

The integrated IMU offers precise measurements of pitch, roll and yaw and also helps fill GNSS gaps.

Resiliant GNSS Performance

Tracking the GPS, GLONASS, BeiDou and Galileo constellations, VBOX Omega offers robust position accuracy and precise measurements of speed and distance, at an extremely competitive price.

What is the VBOX Omega Technical Specification?

  • Position Accuracy (Standalone)*
    H: 1.5 m CEP
  • Position Accuracy (with SBAS)*
    H: 1.0 m CEP
  • Position Accuracy (with RTK)*

    H: 0.01 m + 1 ppm CEP
    V: 0.01 m + 1 ppm R50

  • Speed Accuracy
    ±0.1 km/h
  • Heading Accuracy

    0.3°

  • Pitch Angle Accuracy

    0.06° (RMS)

  • Roll Angle Accuracy

    0.06° (RMS)

  • Outputs

    CAN, RS232, Digital

  • CAN Data Output Rate

    125, 250, 500 kbit/s & 1 Mbit/s selectable

  • Data Output Rate

    Up to 100 Hz

  • IP Rating

    IP67

  • Power requirements

    12 V DC (6.5 – 30 V DC)

  • Operating temperature

    -20˚C to +70˚C

  • Size

    139.21 mm x 78.5 mm x 38 mm

  • Weight

    Approx. 480 g

* Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection. 1 ppm means 1 mm/km away from base. ppm is limited to baselines up to 20 km

IMU Specifications

Gyroscopes (Angular rate sensors)*

  • Dynamic range: ±450°/s
  • Nonlinearity: 0.01% FS
  • Resolution: 16 bit ADC (0.014°/s)
  • Bandwidth: 50 Hz
  • Noise density: 0.01°/s/√Hz
  • Bias stability: ±0.003°/s
  • Bias repeatability (1 year): 0.2°/s

Accelerometers*

  • Dynamic range: ±20 g
  • Nonlinearity: 0.1 % FS
  • Resolution: 16 bit ADC (0.15 mg)
  • Bandwidth: 50 Hz
  • Noise density: 60 µg/√Hz
  • Bias stability: 15 µg
  • Bias repeatability (1 year): 0.005 g
*Inertial measurement sensors are highly sensitive mechanical systems. Their performance and life span can be impacted by severe vibration or heavy knocks, and we can only guarantee the gyroscope and accelerometer specifications for a maximum of 2 years from the date of purchase.
